Cool air modules

All Cool Air Modules are each 2m in length, they can cool substrates with either cool ambient air or with refrigerated chilled air.

2-metre cold (ambient) air module with high-efficiency cool air delivery and extraction system.
This system provides a powerful vacuum hold down facility under the conveyor belt within the module.
The fully insulated raising hood is designed to provide an even air delivery across the entire conveyor belt area for consistent and repeatable results.
The uniquely designed galvanised jet plates are easily removable.
2 integral gas-filled lifting arms are fitted to the dryer for ease of access for maintenance and cleaning.
This module is fully sealed and is fitted with dedicated infeed and outfeed duct connection points.

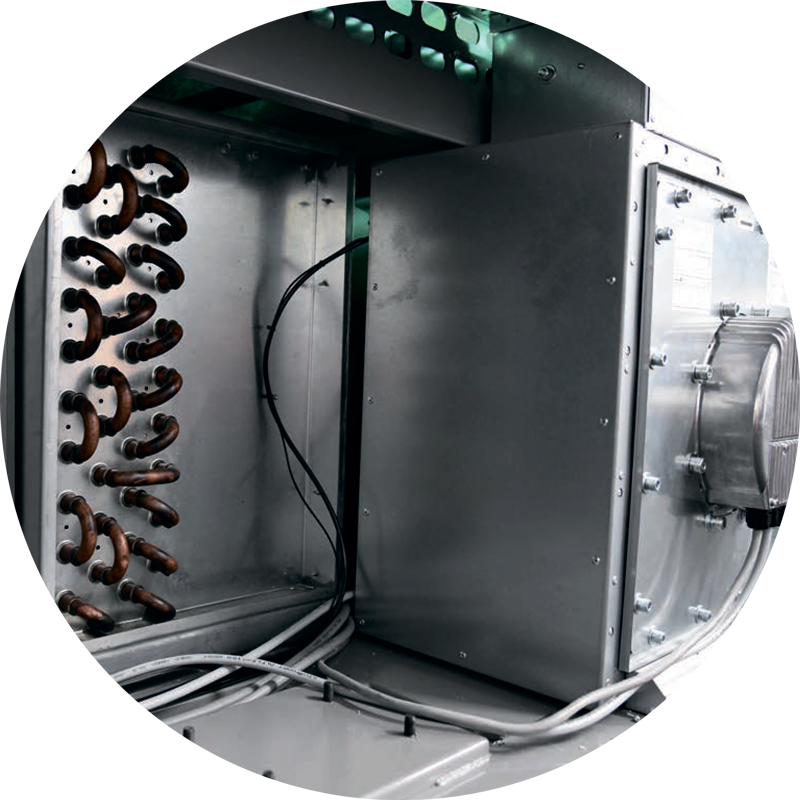

Internal image of Cool Air modules to show the cooling coils.

2-metre module with a UV section with an ambient forced air cooling zone
Optional UV output monitoring and closed – loop control – for precise UV power output control

2-metre cold (refrigerated) air module using a high-performance fan and high-efficiency air recirculation system.
The module is fitted with a large internal cooling coil and recirculation filter
Temperature set point and monitoring
Condensate water drain
Separate water chiller available
