Our Products

Natgraph’s long experience and extensive product range founded on 40 years of focus on the Industrial Print market means that we have the solution you need.

Dryer width generally relates directly to the width of the substrate being printed or coated on. Natgraph offers a range of standard belt/curing widths from 60cm (UV only) to 260cm.

Dryer length relates directly to process speed and chemistry. There are well established norms that can often be applied, but in the event this needs to be specified we have the equipment and expertise to do this within the Drying Solutions Centre. Please get in touch for necessary advice and support.

If your requirements are not met by the sizes above, please let us know. Because we design and manufacture all aspects of our products, we are routinely asked to build equipment with very specific features. This means that in addition to well established and proven layouts for numerous applications we are also well able to cater for the less conventional process.



Product Selector

Please select from the dropdowns above
Air Force Dryer - Warm
Air Force Dryer - Warm
  • Forced Air for Graphic applications where temperature will not exceed 85ᵒC
  • Infra-red can be used to supplement the forced air drying of our solvent product range.
  • Precise temperature control, tight temperature uniformity, variable airspeed and belt speed are standard.
  • Optional Infra-Red available in various forms to meet your needs
  • PLC Control as standard.
Download Brochure
Air Force Dryer - Hot
Air Force Dryer - Hot
  • Forced Air for High Temperature applications with temperatures ranging from 85ᵒC to 400ᵒC
  • Infra-red can be used to supplement the forced air drying of our solvent product range.
  • Precise temperature control, tight temperature uniformity, variable airspeed and belt speed are standard.
  • Optional Infra-Red available in various forms to meet your needs.
  • PLC Control as standard.
Download Brochure
Freestanding UV High Power
Freestanding UV High Power
  • Coolest conventional UV available on the global market.
  • 3m or 3.5m long
  • Available with either single or double lamp format
  • Available with either 120W/cm or 170W/cm
  • The most common lamp is Mercury (Hg) and we also offer doped lamps including Iron (Fe) and Gallium (Ga).
  • PLC Control as standard
Download Brochure
Freestanding UV - Standard
Freestanding UV - Standard
  • Coolest conventional UV available on the global market.
  • Available with either single or double lamp format
  • Available with either 120W/cm or 170W/cm
  • The most common lamp is Mercury (Hg) and we also offer doped lamps including Iron (Fe) and Gallium (Ga).
  • PLC control as standard
  • Inter-lamp cooling zone
  • After cure cooling zone
  • Optional Ozone Filter
Download Brochure
Freestanding UV - Glass
Freestanding UV - Glass
  • Coolest conventional UV available on the global market.
  • Available with either single or double lamp format
  • Available with either 120W/cm or 170W/cm
  • The most common lamp is Mercury (Hg) and we also offer doped lamps including Iron (Fe) and Gallium (Ga).
  • PLC control as standard
  • Inter-lamp cooling zone
  • After cure cooling zone
  • Optional Ozone Filter
Download Brochure
Combination Dryers - Warm
Combination Dryers - Warm
  • Forced Air and UV for Graphic applications where temperature will not exceed 85ᵒC
  • Infra-red can be used to supplement the forced air drying of our solvent product range.
  • Dual control is an option where simultaneous solvent and UV are required.
  • Precise temperature control, tight temperature uniformity, variable UV Output, airspeed and belt speed is standard.
  • Optional Infra-Red available in various forms to meet your needs
  • PLC Control is standard.
Download Brochure
Combination Dryers - Hot
Combination Dryers - Hot
  • Forced Air for High Temperature applications where user requires high performance UV. Temperatures ranging from 85ᵒC to 400ᵒC and UV output up to 120W/cm or 170W/cm
  • Infra-red can be used to supplement the forced air drying.
  • Dual control is an option where simultaneous solvent and UV are required.
  • Precise temperature control, tight temperature uniformity, variable airspeed and belt speed are standard.
  • Optional Infra-Red available in various forms to meet your needs.
  • PLC Control is standard.
Download Brochure
Stackers Heat Exchangers
Options

Stackers

  • Stack up to 4000 sheets per hour
  • Full PLC control
  • Complete line integration with dryer and printing press
  • E-Stops from anywhere on line control each element
  • Quite simply the best stacker on the market
  • Easy set up
  • Strong construction for decades of service
Download Brochure

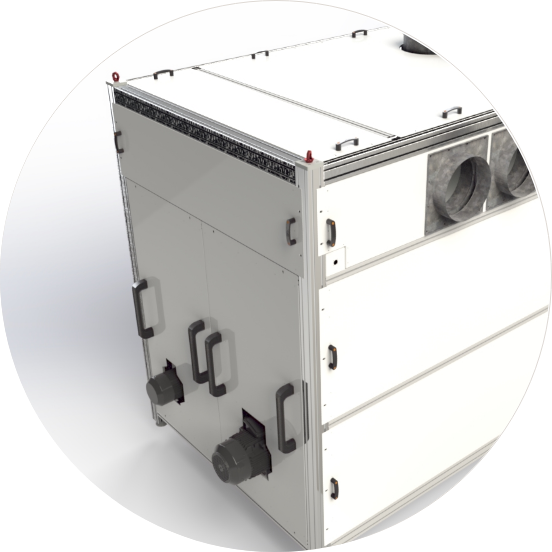

Heat Exchangers

  • In order to maintain a safe solvent load in the dryer we bleed some of the used, solvent loaded and energy rich air out of the dryer.
  • Heat Exchangers will recover up to 60% of that energy and invest it into the incoming fresh top up air. This means the dryer needs to work less hard to get the new air up to temperature and therefore saves on energy costs.
Download Brochure
